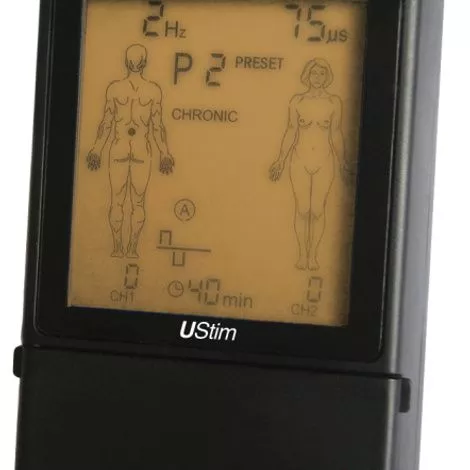

Pain Management Ustim Muscle Stimulator (EMS) Device Features
- Pain Management Ustim Muscle Stimulator (EMS) Device Package Includes:
– A device
– Batteries
– Lead wires
– 1 pack of 4 electrodes
– A carrying case
– Users manual - The Ustim offers 12 different modes which allows it to treat a wide spectrum of injuries
- 12 modes of operation are user friendly and written in practical terms
- The interferential unit is by far one of the best portable EMS unit on the market
- Helps in relieving the following pains:
– Muscle soreness
– Muscle stiffness
– Arthritis
– Body pain
– Post operation pain
– Post traumatic acute pain
– Chronic pain
More Information
- Dual Channels, Isolated between channels – YES
- Pulse Amplitude (mA):
– Ch1 intensity setting in 20 steps of 5mA, from 5mA to 100mA on a 1 KO load (peak-to-peak value, by using a pulse width of 200µs)
– Ch2 intensity setting in 20 steps of 5mA, from 5mA to 100mA on a 1 KO load (peak-to-peak value, by using a pulse width of 200µs) - Pulse Frequency (Hz) – 2 to 120hz, adjustable
- Pulse Width (us) – 50-400µs in steps of 50µs
- Wave form – Asymmetric biphasic square pulse, Rectangular biphasic symmetrical, Rectangular symmetrical alternated
- Timer control (mins)- Continuous 10, 20, 30, 45, 60, 90 minutes
- Stimulation Mode:
– RISE-FALL times: 0-5s in steps of 0.25s
– ACTION time: 1-60s in steps of 1s
– REST time: 0-60s in steps of 1s - Power Supply- 9V DC square shape battery
- 2 AA LR6 Alkaline batteries
