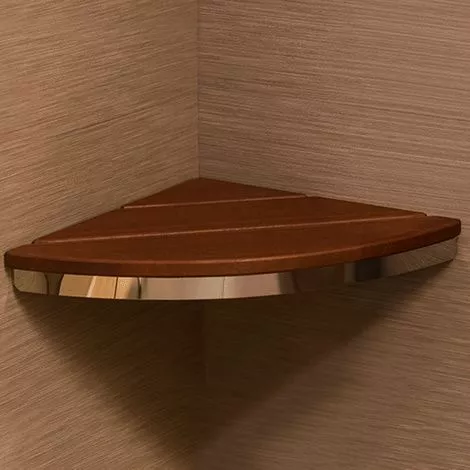

Key Features of Invisia Shower Seat
- Bamboo Seat:
– Sustainable, hypoallergenic and naturally resistant to moisture, temperature and bacteria - Frame is made from durable, rust, resistant aluminum
- Each slat is finished with Rubio Monocoat, an extremely durable 2-part natural oil finish that does not contain volatile organic compounds (VOCs) or other harmful chemicals
- Only, contact with direct sunlight causes the seat to weather over time (similar to other woods)
- Supports up to 500lbs (227kgs) when installed to structural wood backing
- Solid construction and mounting
- Hidden mounting brackets
- Decorative metal trim
- Contents:
– Corner Seat
– Wall Bracket (x2)
– Metal Trim
– 10 x 2″ Wood Screw, S/S (x8)
– Lock Washer, S/S (x8) - Instruction Manual
Installation Instructions for Corner Shower Seat
- Mark of the desired location for top surface of seat
- Wall bracket holes should be 1-7/8″ / 48mm lower than the top surface of the seat. Use level to mark center line
- Untighten screws to remove the metal trim. This will allow better access to the mounting holes of the wall brackets
- The wall brackets are designed to be outwardly adjusted to accommodate corners that are slightly greater than 90 degree
- To ensure both wall brackets make full contact with the walls, untighten screws and shift wall brackets accordingly
- Position bracket holes over the center line and mark locations
- Notch the tile with the center punch
- Drill pilot holes for fasteners
- Fasten the Corner Seat to the wall using lock washers and appropriate fasteners and waterproofing. Inspect hardware regularly, and tighten if required
- Re-install metal trim onto the bottom of the seat
