Features

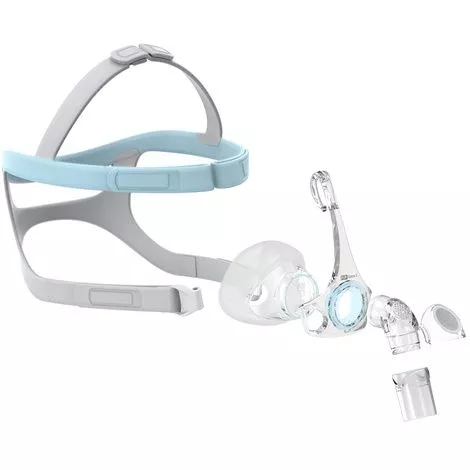

- Fisher & Paykel Eson 2 Nasal Mask With Headgear includes:
– Intutive headgear
– Easy frame
– VisiBlue highlights
– RollFit seal
– Washable diffuser - RollFitSeal
– Th RollFitSeal rolls back and forth, relieving pressure on the bridge of the nose and allowing adjustment to a wide variety of face types. The seal now includes VisiBluehighlights to aid with correct use, orientation, disassembly, and reassembly
– Larger seal alignment key
– Lighter and more compact seal
– VisiBlue highlights - EasyFrame
– The Easy Frame fits all three seal sizes and now has a narrower profile for a clearer line of sight. The diffuser, swivel, and clips are redesigned for enhanced ease of use
– Removable Ball and socket elbow for easier multi-patient cleaning
– One-piece, washable diffuser
– Improved clip ergonomics
– Redesigned swivel with VisiBlue highlights - VisiBlue
– Blue highlights incorporated into key mask components assist patients with mask use, orientation, disassemble and reassembly - Washable diffuser
– The innovative diffuser, which reduces noise and draft, is now washable and more durable - Indications:
– The F&P Eson 2 Nasal Mask is intended to be used by individuals who have been diagnosed by a physician as requiring CPAP or Bi-Level therapy
– The F&P Eson 2 Nasal Mask is intended for single patient adult ( 66 lb (30 kg) use in the home and for multiple patient adult uses in the hospital or other clinical settings where proper disinfection of the device can occur between patient uses
More Information
- Operating instructions:
– The operating pressure range of your mask is 4 to 30 cmH2 O.
– The operating temperature range of your mask is 5 to 40°C (41 to 104 °F). Before using your mask each time, you should:
– Inspect it for damage or deterioration. If there is any visible deterioration (cracking, tears, etc.), do not use your mask, and seek replacement part(s) from your healthcare provider.
– Inspect the exhaust holes on the Elbow. Ensure air is flowing through these holes and do not use if blocked.
– Make sure path of air in mask is free from objects that may prevent breathing - Fitting Your Mask:
– Remove all packaging before using your mask.
– Hold open the bottom straps of the Headgear with the Mask Frame facing downwards.
– Guide the headgear over your head so that the silicone seal is resting on your forehead.
– Place your hands on the bottom straps on either side of the mask frame and pull out and downwards.
– Ensure the silicone seal rests over your nose and the blue top strap is sitting on your forehead.
– Gently tighten the headgear straps of the mask headgear starting with the blue forehead straps followed by the bottom straps.
– The forehead straps should rest horizontally on the forehead, just above the ears. If required the crown strap can be adjusted to achieve this - Useful fitting tips:
– If you are experiencing mask leaks, you may need to lift the Silicone Seal off your face and reposition it again.
– Ensure the masks headgear straps are not fastened too tightly.
– The forehead straps should rest horizontally on the forehead, just above the ears. - Disassembly For Cleaning:
– Unhook the Headgear Clips from the Mask Frame
– Slide the forehead straps of the Headgear downwards from the top of the Mask Frame
– Remove the Silicone Seal from the Mask Frame.
– Remove the Swivel from the Elbow
– Remove the Diffuser from the Elbow - Cleaning Your Mask At Home:
– Wash your mask (excluding the Headgear and Diffuser ) after each use:
– Hand-wash your mask in soap dissolved in lukewarm water. Do not soak for more than 10 minutes.
– Rinse thoroughly with fresh water, ensuring that all soap residue has been removed.
– Leave all parts to dry out of direct sunlight before reassembling. - Wash your Headgear (not included) and Diffuser after 7 days of use:
– Hand-wash your Headgear in soap dissolved in lukewarm water. Do not soak your Headgear for more than 10 minutes.
– Gently hand-wash the Diffuser in soap dissolved in lukewarm water, avoid scrubbing the material. Do not soak your Diffuser for more than 10 minutes.
– Rinse thoroughly with fresh water, ensuring that all soap residue has been removed.
– Leave all parts to dry out of direct sunlight before reassembling. - Cleaning Cautions:
– Do not clean your mask with products containing alcohol, anti-bacterial agents, antiseptic, bleach, chlorine or moisturizer.
– Do not clean your mask in a dishwasher.
– Do not store your mask in direct sunlight.
– The above actions may deteriorate or damage the mask and shorten its life. If there is any visible deterioration do not use your mask, but seek replacement part(s). - Warnings:
– Your mask should only be used with approved CPAP or Bi-Level equipment recommended by your physician or respiratory therapist.
– Your mask should not be used unless the CPAP or Bi-Level machine is turned on and operating properly. The exhaust holes associated with the mask should never be blocked.
– CPAP and Bi-Level machines are intended to be used with special masks, which have exhaust holes to allow continuous flow of air out of the mask.
– Device switched on (with mask connected): When the CPAP or Bi-Level machine is turned on and functioning properly, new air from the CPAP or Bi-Level machine flushes the exhaled air out through the masks exhaust holes.
– Device switched off (with mask connected): When the CPAP or Bi-Level machine is turned off, not enough fresh air will be provided through the mask, and exhaled air may be re-breathed. Re-breathing of exhaled air for longer than several minutes can lead to suffocation in some circumstances.
– At low CPAP or Bi-Level pressures, the flow through the exhaust holes may be inadequate to clear all exhaled gas from the tubing. Some re-breathing of exhaled air may occur.
Discontinue use and consult your healthcare provider or physician if the following occurs:
– Mask discomfort or irritation
– Allergic reaction
– Do not use if vomiting or feeling nauseous.
Use with oxygen: With your CPAP or Bi-Level machine, the oxygen flow must be turned off when the machine is not operating. Oxygen accumulated in your CPAP or Bi-Level machine enclosure will create a risk of fire. You should not smoke or be in the vicinity of someone smoking while using oxygen with your mask.
– Only use F&P Eson 2 Diffuser spare parts.
– Ensure the diffuser is completely dry before each use.
