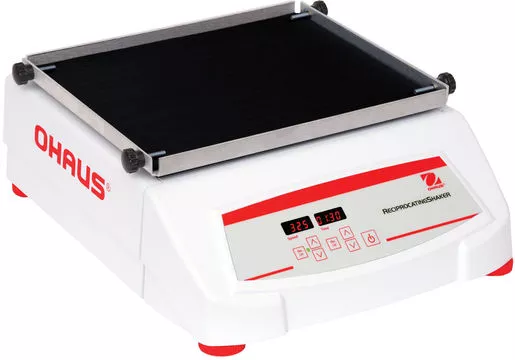

Product Description
SHRC0719DG, US
Ohaus 30391828 ” title=”Shaker, Reciprocating,
SHRC0719DG, US
Ohaus 30391828 ” />Shaker, Reciprocating,
SHRC0719DG, US
Ohaus 30391828
Providing Consistent Shaking Action for a Range of ApplicationsTouchpad controls with independent LED’s for speed/time allow operator to view all settings at once. Timer displays elapsed time or when programmed to a set time, will turn off when time reaches zero.Speed ramping feature slowly increases the speed to desired set-point to avoid splashing. The load sensor detects unbalanced conditions & automatically reduces rpm to a safe speed to protect samples.Our shakers are equipped with an overload protection system. Audible and visual signals will activate when the system detects an obstruction or overload of the tray to warn the operator.Product SpecificationsMotionReciprocating, 19 mmCapacity (text)6.8 kgTray Size (Length)27.9 cm (11.0 in)Tray Size (Width)33.0 cm (13.0 in)ControlDigitalDrive SystemBrushless DC Motor;Single EccentricCalibrationSpeed calibrationWorking Environment14°F – 140°F, 80%RH, non-condensingDimensions (Width)35.5 cm (14.0 in)Stroke (imp:)0.75Tray ConstructionAluminumStroke19Speed Range (text)20 rpm – 300 rpmNet Weight21.8 kg (48.1 lb)Safety CertificationTUVPower Consumption40 WDimensions (Height)14.9 cm (5.9 in)Dimensions (Length)41.3 cm (16.3 in)Working Environment-10°C – 60°C, 80%RH, non-condensingPower120V, 5A, 50/60HzTimer1 second – 160 hoursSpeed Accuracy±1 rpm, Above 100 rpm ±1% of set speed
