Product Description
SHLD0415DG, US
Ohaus 30391912 ” title=”Shaker, Light Duty,
SHLD0415DG, US
Ohaus 30391912 ” />Shaker, Light Duty,
SHLD0415DG, US
Ohaus 30391912

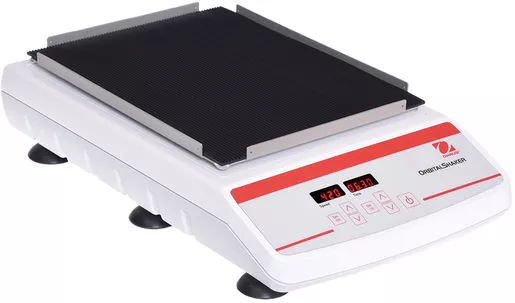

Choose from Four Models for Light Duty ShakingThe variable speed, microprocessor control provides consistent, uniform shaking action. The microprocessor displays the last setpoint and will restart if power is interrupted (on digital models).Triple eccentric drive with permanently lubricated ball bearings and maintenance-free, brushless DC motor provide reliable service and continuous duty operation.Units slowly increase speed to desired setpoint to avoid splashing. Digital models feature overload protection – audible & visual signals activate when system detects an obstruction or tray overload.Product SpecificationsMotionOrbital, 15 mmCapacity (text)3.6 kgTray Size (Length)29.9 cm (11.75 in)Tray Size (Width)22.2 cm (8.75 in)ControlDigitalDrive SystemBrushless DC Motor;Triple EccentricTray ConstructionAluminumTimer1 second – 160 hoursSpeed Range (text)40 rpm – 300 rpmOrbit15.0 mm (0.6 in)Dimensions (Height)10.8 cm (4.3 in)Working Environment-10°C – 60°C, 80%RH, non-condensingNet Weight10.9 kg (24.0 lb)Safety CertificationTUVDimensions (Width)26.0 cm (10.3 in)Working Environment14°F – 140°F, 80%RH, non-condensingPower Consumption25 WDimensions (Length)41.3 cm (16.3 in)Power120V, 5A, 50/60HzSpeed Accuracy±2 rpm, Above 100 rpm ±2% of set speed
