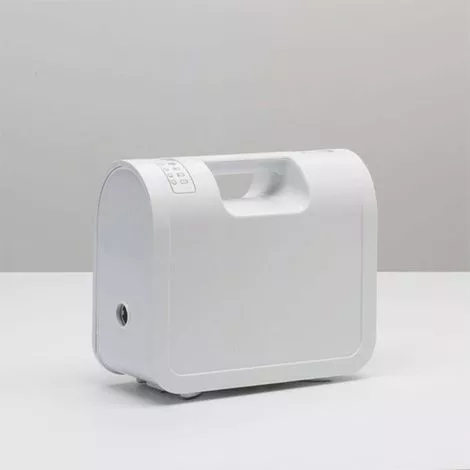

AirFlo 12 Compressor Packaging Contents
- The compressor fitted with a 12V – 2200mAh NiMH battery pack
- Battery charger
- 2-Way hand control
- User instruction manual
Features of Mangar AirFlo 12
- Efficient, durable battery technology NiMH – 1 x 12V
- 20% Lighter than previous model
- battery and mains version available
- Integral ‘Up/Down’ control buttons
- Charge recovery time to do 1 further lift – 2 hours
- Ergonomically designed grab handle allows for easy and balanced carrying
- Easy to read power levels
- User Instructions
Note: For optimum performance, keep the Airflo fully charged so it is ready to use whenever one may need it
How to Operate the Mangar AirFlo 12?
- Disconnect the compressor from the charger and place it in a convenient and safe position
- Connect the Hand Control Plug to the AirFlo 12 hand control socket
- Connect the hose from lifting equipment to the air outlet socket and make sue it ‘clicks’ into place
- Press the ‘UP’ button to inflate
- Press the ‘DOWN’ button to deflate the cushion
Note:
- When inflating the Mangar cushions, the AirFlo Compressor will stop automatically once the product is completely inflated.
- When either the ‘Up’ or ‘Down’ buttons are pressed, the internal microprocessor carries out a battery voltage check and if the voltage becomes too low, the ‘Down’ button will not work. This feature will always ensure that the seat of a Mangar Health bathing product cannot be lowered into a bath if there is insufficient battery power to raise it again.
Which Mangar Cushions Require AirFlo 12 Compressor?
The Airflo 12 by Mangar Health is a low pressure air compressor, which has been designed to inflate a range of Mangar Health pneumatic lifting equipment.
