Features

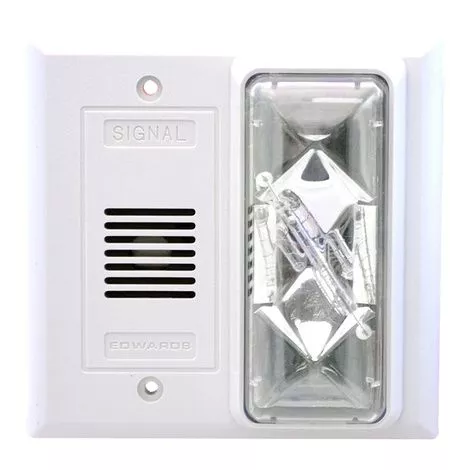

- Hard-Wired Doorbell with Loud horn And Flashing Strobe includes Doorbell Signaler
- 92dB horn at 10ft away
- 24V 50/60 Hz or 24V DC
- Current draw: 175 mA at 24V 50/60 Hz; 125 mA at 24V DC
- Strobe output: 50 cd on-axis
- Designed for installation in a single-gang 2″ x 4″ box
- UL 1638 Listed
- Maximum 2 signalers per system
Click Here For User Manual
More Information
Warning:
- To reduce the risk of shock, do not remove lens or temper with the unit when the circuit is energized.
- Do not connect AC power until installation is complete.
- Disconnect power and allow 5 minutes for stored energy to dissipate before starting work or disassembly.
- High energy could be stored in the strobe circuit once it is energized.
