Product Description
Maximum Capacity 220 gr

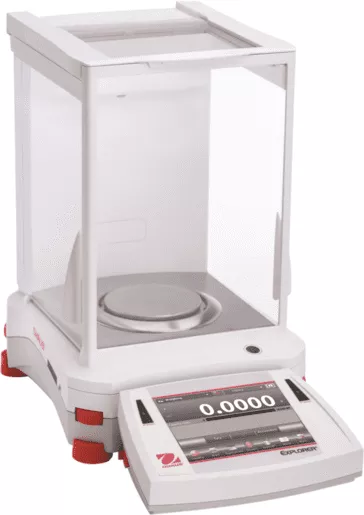

Ohaus EX224/AD” title=”Electronic Balance,
Maximum Capacity 220 gr
Ohaus EX224/AD” />Electronic Balance,
Maximum Capacity 220 gr
Ohaus EX224/AD
Intelligent Performance No Matter How Difficult the Task!A large color touchscreen gives access to the advanced application modes and icon-driven application software features such as user manager, library, and minimum weight indication.Explorer features fast stabilization times, optimized linearity and repeatability specifications, enhanced vibration filtering as well as AutoCal™ calibration to ensure accuracy.The draftshield provides easy entry to the weighing chamber through the flip or sliding top door and the top-mounted side doors which can be automatically controlled on /AD models.Product SpecificationsMaximum Capacity220 gReadability0.1 mgPan Size (Ø_Diameter)90.0 mm (3.5 in)Internal CalibrationAutoCal™ – AutomaticDraftshieldIncludedMinimum Weight (USP, 0.1%, typical)0.16 gPan ConstructionStainless SteelTest Weight200g, OIML E2 or ASTM CL 4Auto DoorIncludedLinearity ±0.0002 gLegal for TradeNot ApplicableIn-use coverIncludedBattery LifeNot ApplicableRepeatability (typical)0.0001 gDisplayFull-color 5.7 in VGA, touch screenTare RangeTo capacity by subtractionWorking Environment50°F – 86°F, 85%RH, non-condensingDimensions (Height)350.0 mm (13.8 in)Working Environment10°C – 30°C, 85%RH, non-condensingNet Weight6.9 kg (15.2 lb)Dimensions (Length)393.0 mm (15.5 in)Dimensions (Width)230.0 mm (9.1 in)PowerAC Adapter (Included)Stabilization Time2 sAuxiliary Display ModelAvailable as an Accessory
