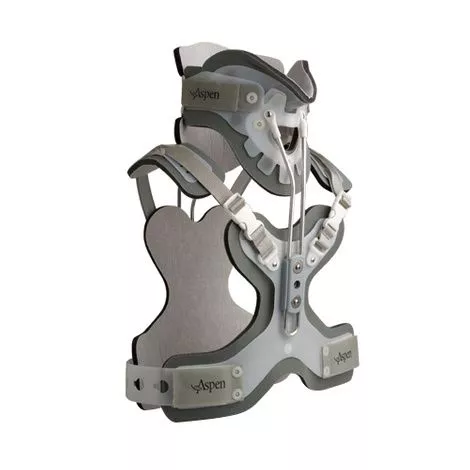

Aspen CTO Spinal Brace Features
- Proven performance
- Multiple orthotic options
- MRI compatible
- Available in two or four post-option
- Available in a pediatric CTO
- Provides a fully integrated approach for quantifiable motion restriction of cervical spine patients
- No ferrous metal is used
What to buy with Aspen Cervical Collar
- Ossur Miami J Cervical Collar
- Core Traction Harness System
- Core Econo Wave Cervical Pillow
Instructions for Use of Aspen CTO Cervical Brace
Measuring the correct size of the CTO Brace
Use these guidelines to measure the patient for the correct size Aspen Collar.
- Measure the chest circumference 1 inch below the tip of the Xiphoyd process.
- For circumferences smaller then 39″, trim the ends of the belt panels at the notch.
- Attach the belt by aligning the keyhole over the aluminum rivet and pull to lock in place.
- Do this on both sides.
Instructions For Fitting
Supine:
- Slide the CTO underneath the patient while compressing the mattress cover. Logroll the patient if needed.
- – Line up the control clamp to the center line on the chest and attach the Velcro loop. – Snap the shoulder straps into place and loosely tighten. – Bars may be bent to accommodate patient anatomy.
- Note: To relieve pressure at the front on the collar, bend bars away from the patient.
- Use a phillips head screw driver to loosen screws to adjust the height of the bars.
- Tighten the clamp after adjustment.
Warnings:
- Aspen CTO can be altered to mirror changes in the patient’s condition. For supine patients where posterior support posts are desirable, a pillow may be used under one shoulder to minimize pressure caused by the posterior support post.
- Be aware that excessive tightening of the shoulder straps will cause traction.
- Do not use a full-size screwdriver to tighten or adjust the support post clamps while the device is on the patient.
- When advancing to a 4-post configuration, ensure that the post strap covers the support post.
- For kyphotic patients or for others with postural abnormalities, it is possible to bend the support posts for a better fit.
- To accomplish this, use a pair of bending irons or remove the posts from the clamp and bend using a vise to ensure that they remain symmetrical.
- Be careful not to weaken the posts by bending them repeatedly or by bending them more than 45 degrees.
